TMN1 4.1
Home Theater System (Bluetooth Optional)
Introduction
Uncoloured audio, precise position, and high resolution system designed
with quality wood finish.
Features

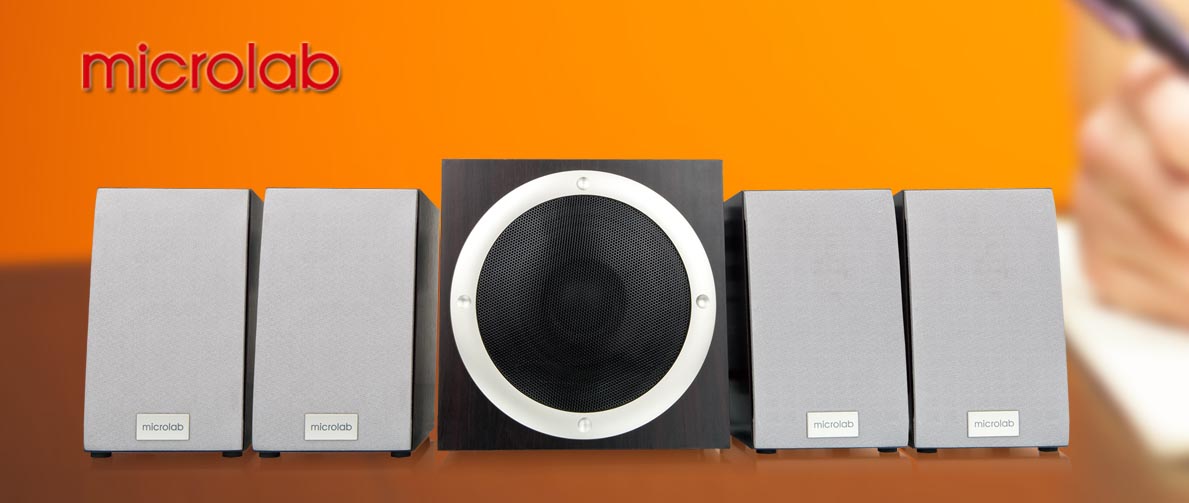

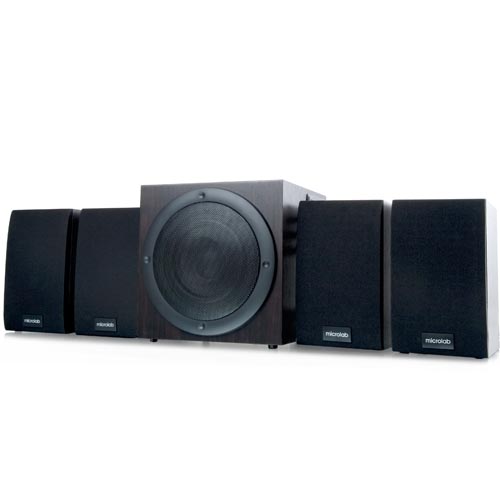

• Powerful 4.1 subwoofer system with full range acoustic production and cabinet satellites
in all wood finish.

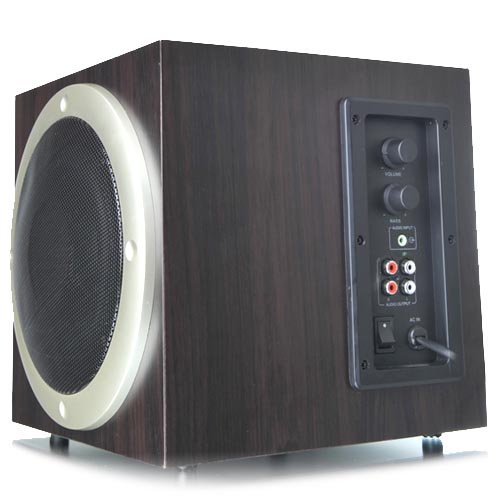

• Subwoofer with deeper bass and vocals.
• Side panel for easy access.
• Bass and treble volume knob for personal sound effects.
• Wooden cabinets for natural sound productions.
• The Bluetooth version can be selected.
Specifications
Amplifier
Output power: 34W@RMS
Power distribution: 7 W x 2 +3W x2 + 14 Watt RMS
Harmonic distortion: < 0.5% 1 W 1 kHz
Frequency response: 30 Hz - 20 kHz
Signal/Noise ratio: > 70 dB
Separation: > 40 dB
Speakers
Tweeter driver type: 3.5"
Tweeter driver rated power: 15 Watt 6 Ohm
Woofer driver type: 5.25"
Woofer driver rated power: 25 Watt 4 Ohm
Interfaces
Input: 3.5mm stereo
Output: 4RCA
Satellite speaker dimension: 118(W) x 198(H) x 170(D) mm
Subwoofer speaker dimension: 240(W) x 230(H) x 248(D) mm
Product net weight: 5.6 kg
Package information
Package contents
TMN-1 subwoofer 1 pc
TMN-1 satellites 4 pcs
3.5-3.5mm Audio Cable 1pc
User Manual 1pc
Dimensions
Export carton dimension: 486(L) x 314(W) x 570(H) mm
Export carton gross weight: 13.2 kg (2 sets)
