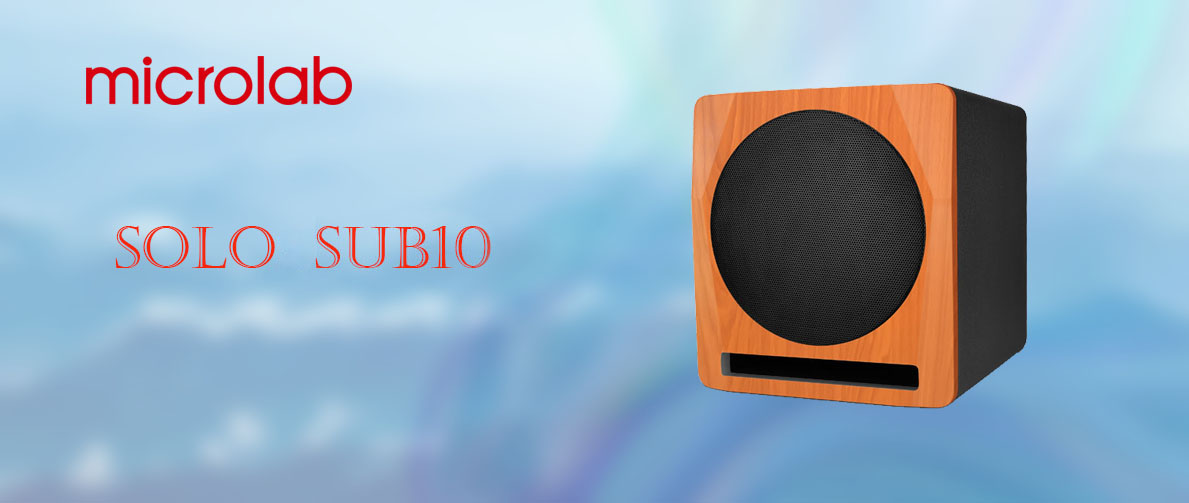

SOLO SUB10
Active Subwoofer
Introduction
Enclosure is made of top quality MDF wood. Our enclosure is not
particleboard it is true high-grade MDF!The enclosure is 0.7" thick
while the front board of it is a full 1.34" thickness to give you the
ultimatebest sound quality!

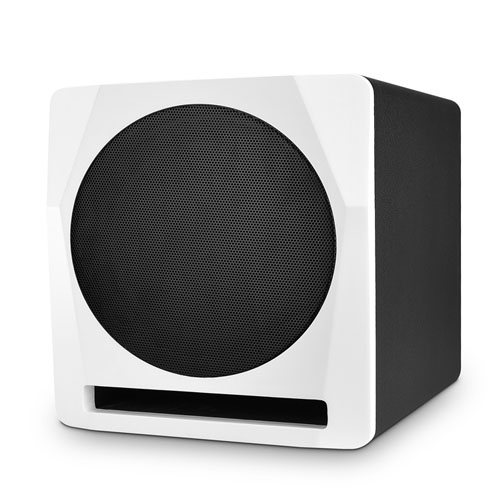

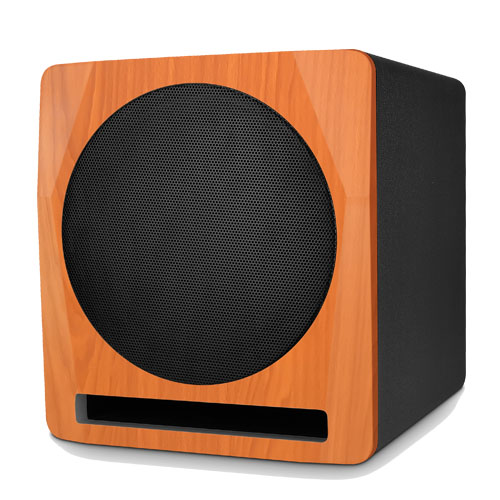

Comes in 3 enclosure finish options Wood finish painted black.
Wood finish painted white. Wood finishwith vinyl front board.
Features
• Built-in class D amplifier.
• STA309 for audio processing and STA516 for amplification.
• Shiny metal mesh grill.
• Distortion-free playback even at max volume.
• Ground Lift switch to help reduce loop noise.
Specifications
Amplifier: Class D mono block
Low-Mid Frequency: 10" painted paper cone with rubber sourround
Frequency response: 34Hz -150Hz
SPL peak: 100dB @1w/1m
Driver power output: 200 Watts RMS /400 Watts peak
Speaker impedance: 4 Ohm
Low pass frequency adjustment: 50Hz-150Hz
Input connectors: Unbalanced RCA line in/line out, Balanced 1/4",
TRS Left/Right inputs, Left/Right XLR input and outputs, 1/4" Sub and HPF bypass
AC Power input: 220V (50 Hz)
Product dimension : 340 x 368 x 398 mm
Product net weight: 14.5 kg
Package information
Package contents
SOLO SUB10 subwoofer 1pc
Power cable 1pc
User manual 1pc
Dimensions
Gift box dimension: 505 x 445 x 500 mm
Gift box gross weight: 14.5 kg
Export carton dimension: 522 x 462 x 526 mm
Export carton gross weight: 17.1 kg (1 sets)
