HiFi Home Theater System
Introduction
The C Series is designed to bring you premium Dolby Atmos home theater entertainment. The Dolby Atmos technology works magic on creating a breathtaking three-dimensional realism experience. It uniquely adds an overhead dimension which immerses you in the action with a full audio atmosphere.

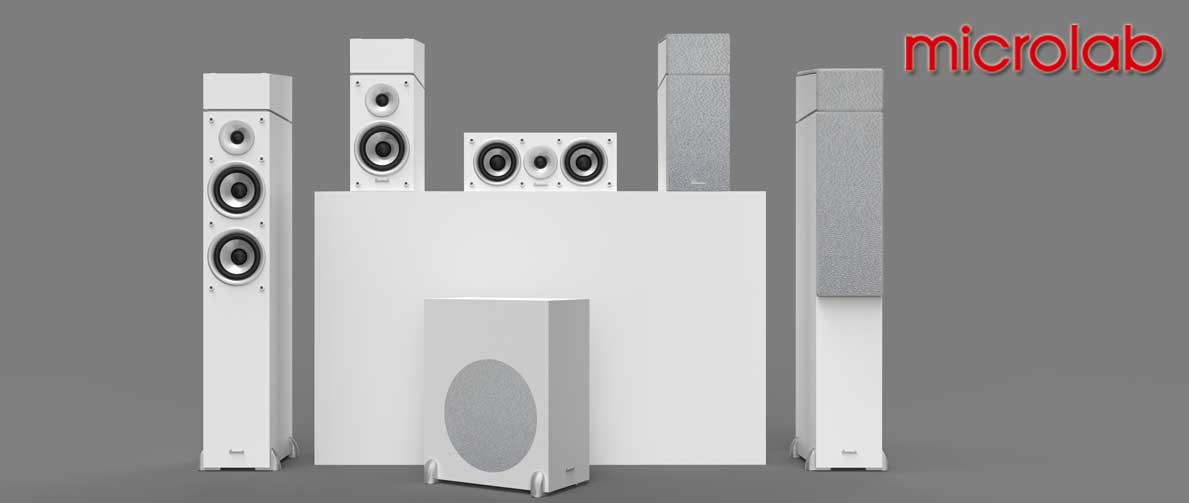

Covered in the elegant white veneer and silky grey grille cloth, it matches to a diversity of home decors. The use of silk dome tweeter and PP cone woofer produce sensational sound in full range of lows, mids and highs. The exceptional superb sound performance allows you to sense the full impact of excitment in a hit blockbuster.
Features
Bring you breathtaking home theater entertainment with Dolby Atmos technology.
One inch silk dome tweeter produces soft and smooth highs with lifelike details.
Mids and lows driver made of PP and MIC for optimal cone formation, low distortion, smooth frequency response curve, and the deepest bass.
Quality crossover design guarantees low distortion and high performance across all frequency ranges.
Metal feet spikes minimize coloration caused by vibration, applicable to hard floor coverings or carpets.
Unique internal cabinet design for solid structure that minimize cabinet interference and sound coloration.
Covered with white/black PVC leather, applicable to a wide variety of home decors.
Gold-plated binding posts providing best connecting.
Specifications

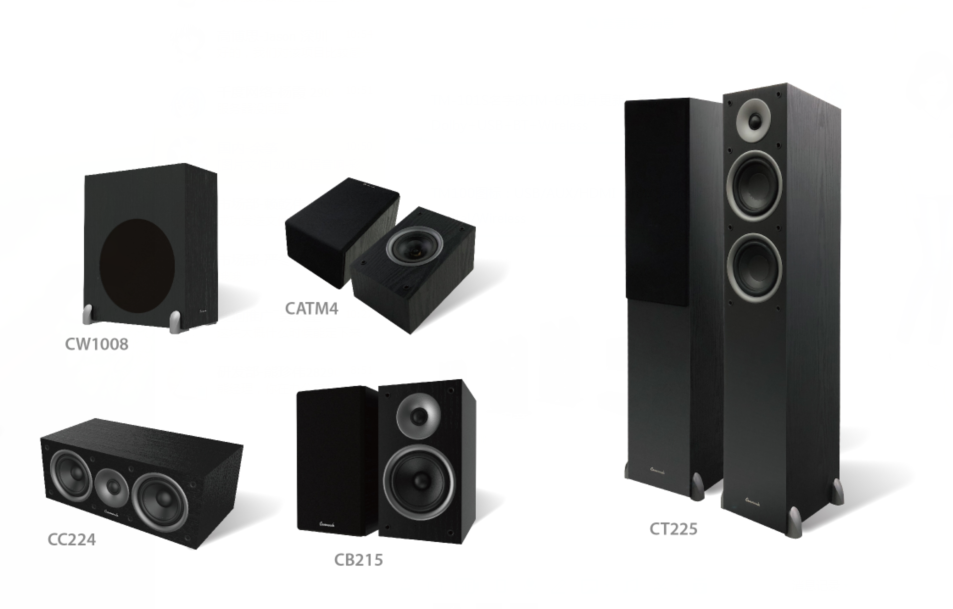

Model No. | CC224 | CB215 | CT225 | CATM4 | Model No. | CW1008 |
Type | Center Speaker | Bookshelf Speaker | Floorstanding Speaker | Upward-firing Speaker | Type | Subwoofer |
Recommended Amplifier Power | 20W-140W | 20W-120W | 20W-220W | 10W-60W | Output Power | 130W |
Tweeters | 1”, Silk Dome | 1”, Silk Dome | 1”, Silk Dome | Woofers | 8”,4Ω | |
Woofers | 4” x 2, PP Cone | 5.25”, PP Cone | 5.25”, PP Cone | 4”, PP Cone | Frequency Response | 40Hz-160Hz |
Frequency Response | 85Hz-20KHz | 55Hz-20KHz | 50Hz-20KHz | 150Hz-20KHz | Signal/Noise Ratio | 80dB |
Sensitivity | 83dB±3dB (1M/1W) | 84dB±3dB (1M/1W) | 84dB±3dB (1M/1W) | 86dB±3dB (1M/1W) | Phase | 0~180 |
Impedance | 6Ω | 6Ω | 6Ω | 6Ω |
