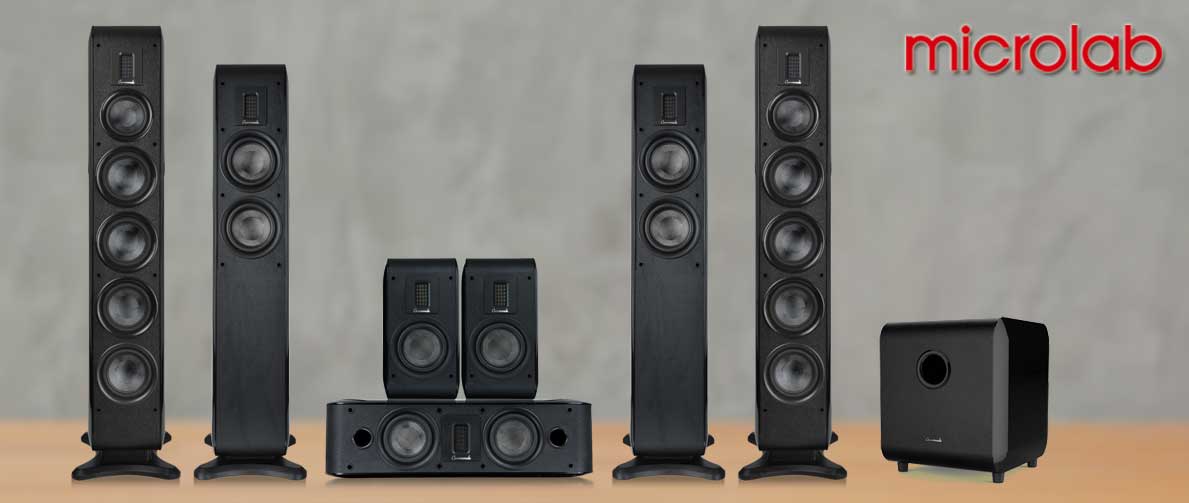

E Series


HiFi Home Theater System


Introduction

The E Series is designed to bring you the luxury home theater entertainment. With exceptionally accurate and clear sound reproduction from an aesthetically pleasing design, each model is specifically engineered to provide supurb acoustic performance.

Under the sophisticated workmanship of  piano baking varnish and leather covering, it perfectly fits into a wide variety of home decors. Further, the application of ribbon tweeter and carbon fiber woofer creates breathtaking sound with astonishing clarity, richness, detail and depth. The unexpected acoustic experience makes you feel like immersing in a concert, a show or a Hollywood block buster.


Features

  • High velocity folded ribbon tweeter with high frequency extended up to 45k Hz.

  • Carbon fiber mid-range driver and woofer are lightweight and rigid, perfect for mass loading, smooth frequency response and minimal distortion.

  • Special internal cabinet design for solid structure that minimize sound coloration.

  • Leatherette covered baffle reduces coloration caused by refraction of sound waves.

  • Quality feet spikes to minimize coloration resulting from vibration.

  • Gold-plated binding posts get signals transmitted with the least interference.

  • High quality crossover filter enables optimum division on signal frequency and power, guarantees high performance of low, mid and high frequency.


Specifications

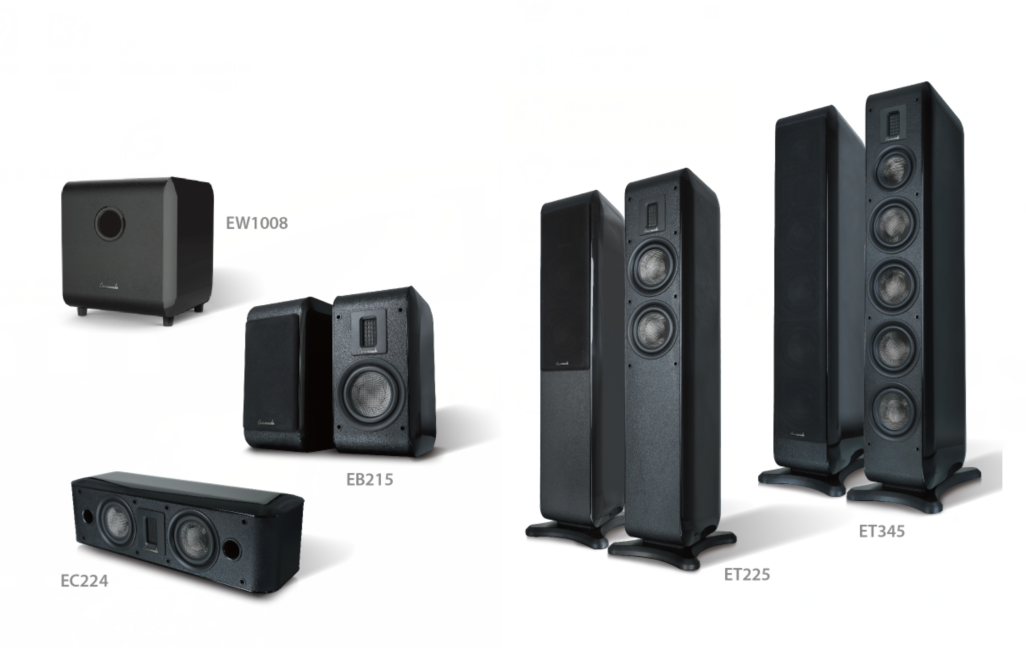

Model No.EC224EB215ET225ET345Model No.EW1008
TypeCenter SpeakerBookshelf Speaker

Floorstanding Speaker

Floorstanding Speaker

TypeSubwoofer

Recommended

Amplifier Power

20W-200W20W-150W20W-250W20W-350W

Output

Power

130W
TweetersAluminum RibbonAluminum RibbonAluminum RibbonAluminum RibbonWoofers

8”,4Ω

Mid-range

Drivers




4"

Carbon Fiber

Frequency

Response

40Hz-160Hz
Woofers

5.25"

Carbon Fiber

5.25"

Carbon Fiber

5.25"

Carbon Fiber

5.25"

Carbon Fiber

Signal/Noise

Ratio

80dB

Frequency

Response

80Hz-45KHz55Hz-45KHz50Hz-45KHz50Hz-45KHz

Phase

0~180
Sensitivity

83dB±3dB

(1M/1W)

84dB±3dB

(1M/1W)

84dB±3dB

(1M/1W)

85dB±3dB

(1M/1W)



Impedance6Ω6Ω6Ω6Ω
